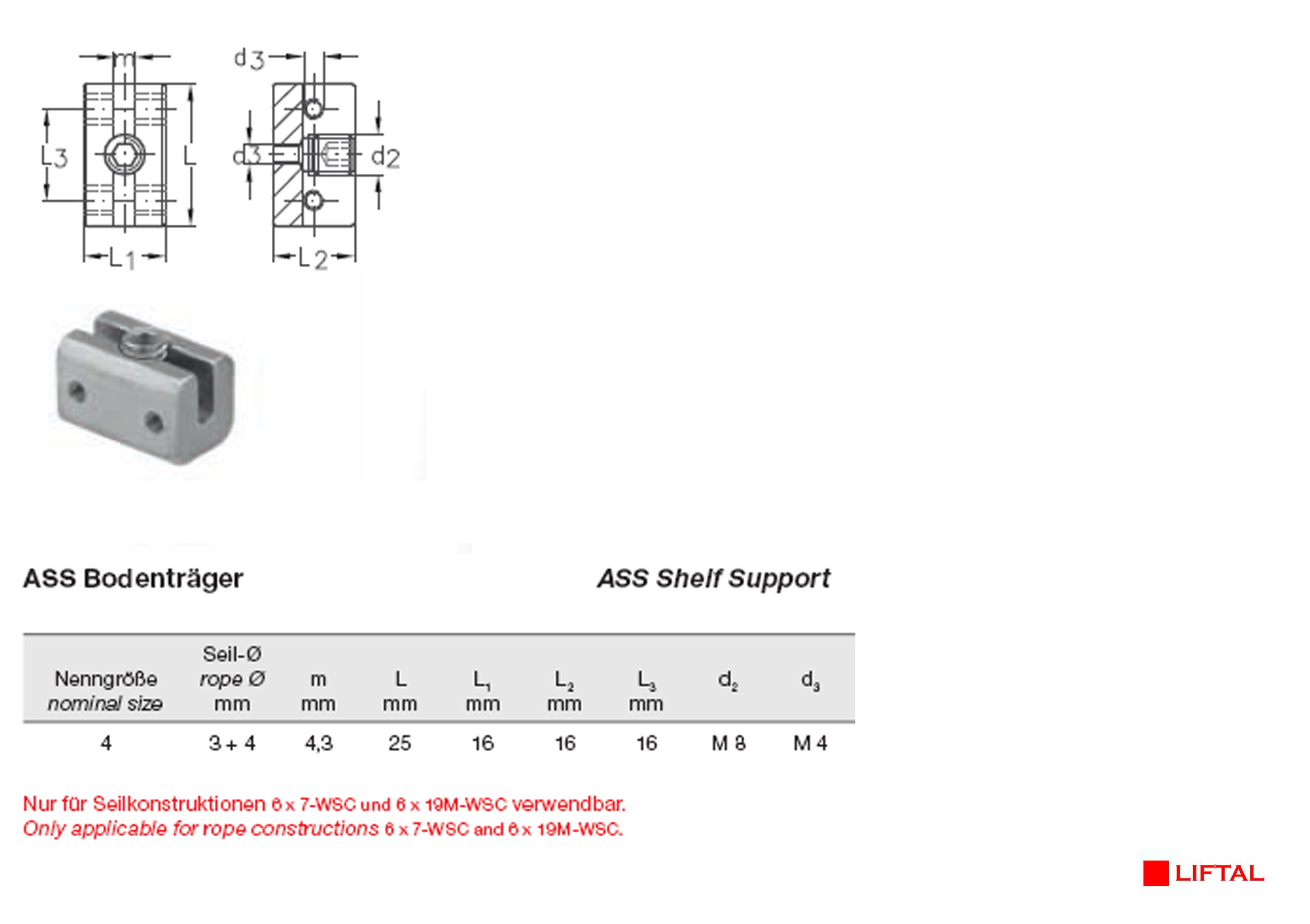

ASS Shelf Support

The ASS Shelf Support can be used for numerous pur poses as a single
item or in connection with various accessories for interior and exterior
areas.
The ASS Shelf Support has a slot to accept a wire rope of 3 or 4 mm
diameter. By the use of a stud the ASS Shelf Support can be fi xed on
the rope. On both sides you will fi nd two threaded holes M 4 and an additional
threaded hole M 4 on the rear.
One has the ability to assemble e. g. shelf-units on both sides, single or
at right angles directly with the ASS Shelf Support. By using two ASS
Shelf Supports the shelf-units can be assembled at any angle. For the
assembly of shelves, partitions or displays we supply accessories like
angles or straps.
For the construction of closed partitions, e. g. for use at fairs and exhibitions,
one might use commercial clamping profi les. These profi les can
be assembled directly to the ASS Shelf Support.
